GENERAL DETAILS

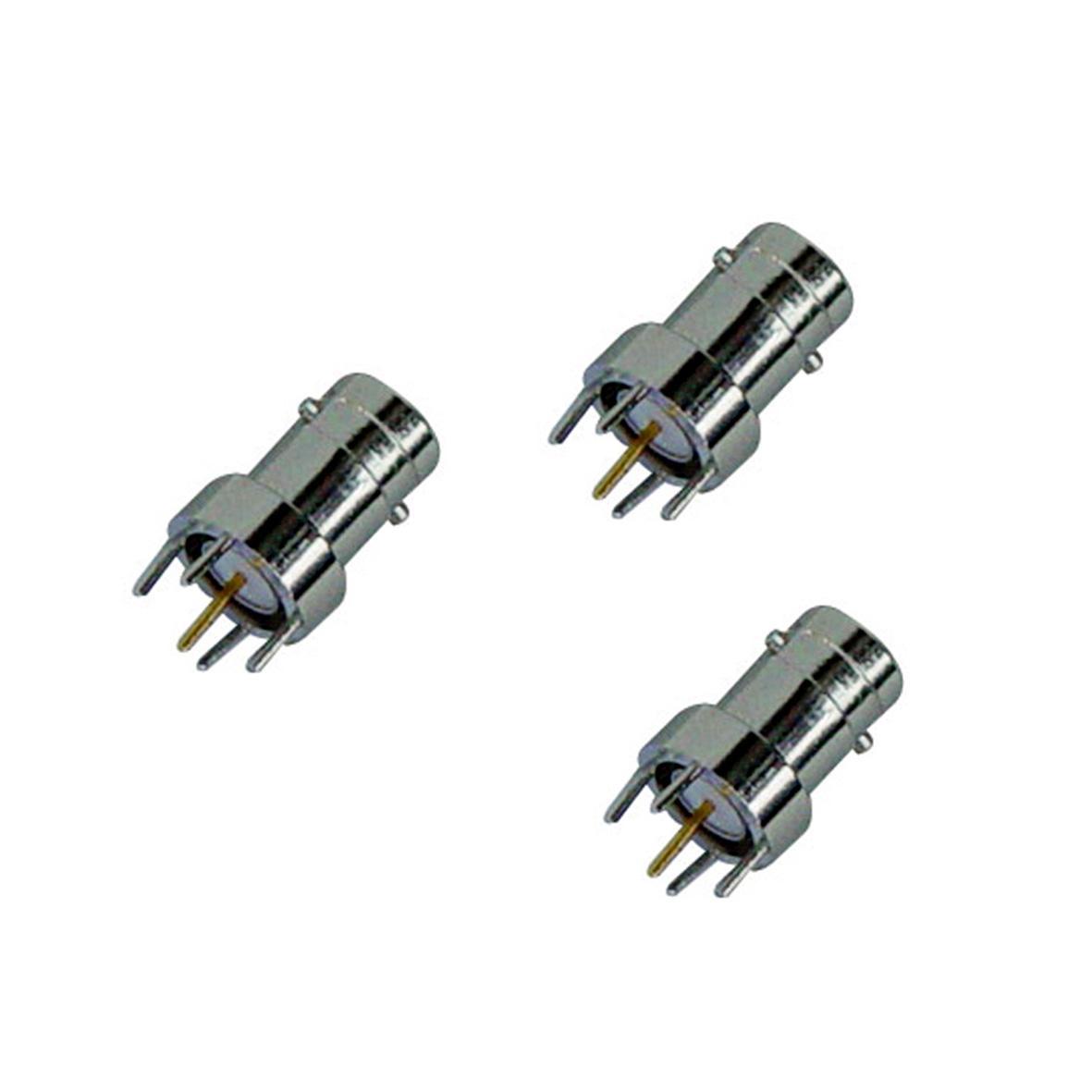

BNC female PCB type connector, BNC 50 ohms jack use for PCB. High quality materials, all materials meet or exceed relevant standards. Body, brass, nickel plated. Insulator, Pin contact: beryllium copper or phos bronze, gold plated.
| SKU: | PMT05002004012 |
Product Features
- Quick and effective termination of coaxial cable with right angle BNC connectors
- Gold plated center contacts minimize signal loss
- Machined components produce a durable connector
- Hard to find right angled BNC connectors available from stock for immediate delivery
Download Brochure
Product Specification
| Impedance | 75 Ohm nominal |
| Frequency Range | 0-4 GHz with low reflection |
| Voltage Rating | 500 volts peak |
| Dielectric Withstanding Voltage | 1,500 volts rms |
| VSWR | M39012 straight connectors: 1.3 max 0-4 GHz |
| M39012 right angle connectors: 1.35 max 0-4 GHz | |
| Temperature Range | TFE insulators: - 65°C to + 165 °C |
| Copolymer of Styrene: - 55°C to + 85°C |
