GENERAL DETAILS

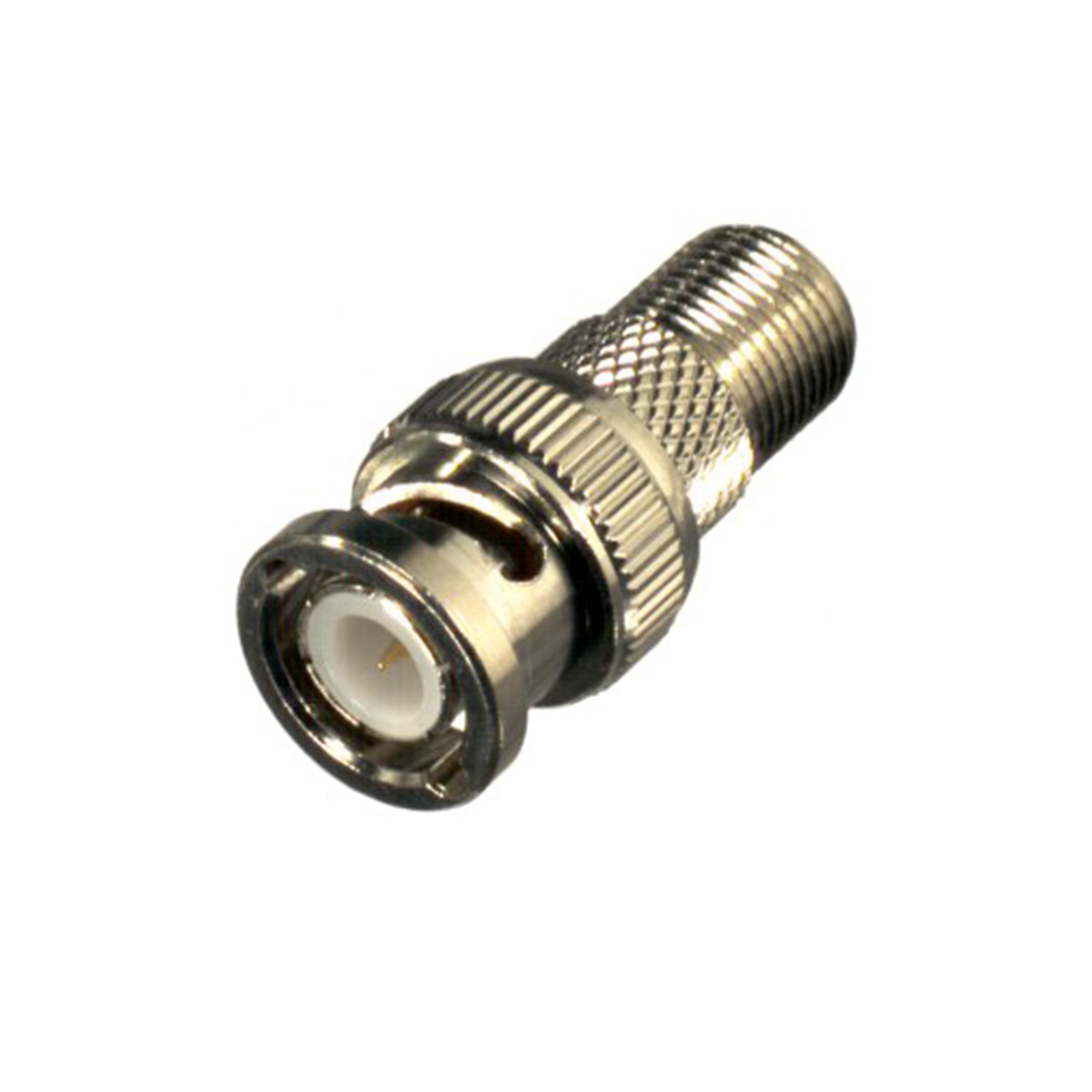

Adapter Bnc Male to F Female Body Plating Nickel, Contact Plating Gold, Dielectric PTFE Temperature Rating -65c to 85c.
| SKU: | PMT05002004006 |
Product Features
- Allows interconnection of devices with TNC male and BNC female interfaces
- Nickel plated body for enhanced corrosion resistance
- Handy device to have on hand to solve your interconnection problems
Download Brochure
Product Specification
| Characteristic Impedance | 50ohm |
| Frequency Range | DC-4GHz |
| VSWR | =<1.30@DC-1000MHz |
| Insertion Loss | =<0.2dB |
| Working Voltage | 500V RMS,50Hz,at sea level |
| Dielectric Withstanding Voltage | =>1500V RMS,50Hz,at sea level |
| Dielectric Resistance | =>5000M Ohm |
